Your journey towards zero emissions starts here...
Solar battery storage unit, expandable to suit any application.
Battery Pod
Intelligent commercial battery energy storage system
Responsive battery storage units for sites large & small.
The Battery Pod portable lithium power station reduces noise pollution, carbon emissions and fuel costs associated with power provision by storing energy to provide offline power to your site.
Energy can be stored from multiple sources and channelled to where it’s needed automatically when demand is high. Our battery energy storage system is designed to be modular; simply plug it in and switch it on. Position the electricity storage unit between your grid power or generator and your site equipment.
For improved sustainability, additional solar power systems can be integrated. There are 5 model sizes available, offering a range of power and storage options to suit your specific requirements and application. It operates as a fully automatic battery energy storage system, so all you need to do is plug it in and switch it on. Your generator then becomes the backup, helping to reduce noise levels while significantly cutting generator run times.
The Autosmart system manages all power inputs to charge the batteries efficiently and controls the output to match demand. Plug in your site generator and the portable battery pod will optimise generator run time to keep up with power demands. For large site setups, multiple energy storage units can be used. Cascade multiple Battery Pods to increase storage capacity, resulting in longer run times and better returns
The Battery Pod is designed to work seamlessly with other AJC Power Solutions products to further increase efficiency. Adding Solar Smart Panels helps accelerate battery charging times and lowers dependence on the grid and your backup power generator.
Explore our Solar power products for more sustainable energy solutions, and consider integrating Power Solar Tower Pod lighting for enhanced illumination on larger sites.
5 Models with AJC SubZero Heated Lithium Batteries
Lithium Ion Phosphate
Capacity: 30 kW
Sustainable Rated
Power: 15kVA
Max Feed Through Current (Bypass):
63 Amp 1P
Max Input
(Grid/Generator):
32 A
Lithium Ion Phosphate
Capacity: 80 kW
Sustainable Rated
Power: 30kVA
Max Feed Through Current (Bypass):
100 Amp 3P
Max Input
(Grid/Generator):
32 A
Lithium Ion Phosphate
Capacity: 100 kW
Sustainable Rated
Power: 45kVA
Max Feed Through Current (Bypass):
400 Amp 3P
Max Input
(Grid/Generator):
2x 125 A (3 phase) + Hardwire via busbar connection
Lithium Ion Phosphate
Capacity: 150 kW
Sustainable Rated
Power: 45kVA
Max Feed Through Current (Bypass):
400 Amp 3P
Max Input
(Grid/Generator):
2x 125 A (3 phase) + Hardwire via busbar connection
Lithium Ion Phosphate
Capacity: 250 kW
Sustainable Rated
Power: 90kVA
Max Feed Through Current (Bypass):
400 Amp 3P
Max Input
(Grid/Generator):
2x 125 A (3 phase) + Hardwire via busbar connection
Reduce CO2 / Reduce Fuel Costs / Reduce Noise
Store energy to provide offline power
Energy can be stored from multiple sources and channelled to where it’s needed automatically when demand is high.
Reduce CO2 even further!
Storage expansion
Multiple battery energy storage systems can be cascaded together, increasing overall capacity and extending run times.
Example:
3x Cascaded 45/150‘s
= 1x 45/450 power solution.
Reduce CO2 even further!
Possible Applications
Construction sites
Temporary offices
Outdoor events
Indoor events
TV & film sets
Grid backup
Grid peak shaving
Pumping applications
Telecoms BTS
Commercial buildings
and many more.
Battery Pod
Commercial Battery Storage Unit
Shown below is a typical site setup working with Solar Smart and Solar Pod.
Sustainable
Silent and emission-free energy storage units
Automatic power distribution.
Reduced fuel consumption on connected generators.
Lower CO2 emissions from grid or generator use.
AJC Sub Zero
Lithium battery bank.
Protection against power drop-outs and inconsistencies.
Build
Fully galvanised robust exterior with high impact resistance.
Optional paint finish available in any RAL colour
Forklift pockets and a balanced lifting hook on the roof.
Sub Zero operating temperature range with heated lithium technology.
Connections
Plug and Play Output:
1x 125amp 3p socket
1 x 32amp 3p socket
3x 32amp 1p socket
Plug and Play Input:
1x 125amp 3p
(for mains grid or external power)
Hardwire input and output.
Alternative power output configurations. (optional)
Remote diagnostics from your phone or laptop.
Local WiFi and 4G mobile data connection.
Systems
Local mains grid/generator override system to ensure continuous power delivery if the battery pod experiences an issue.
Emergency stop with full power cut-off for all outputs and inputs.
Fully automatic power management and distribution.
Victron Connect systems.
ON/OFF timer system to match your power demands and increase efficiency.
Solar Smart

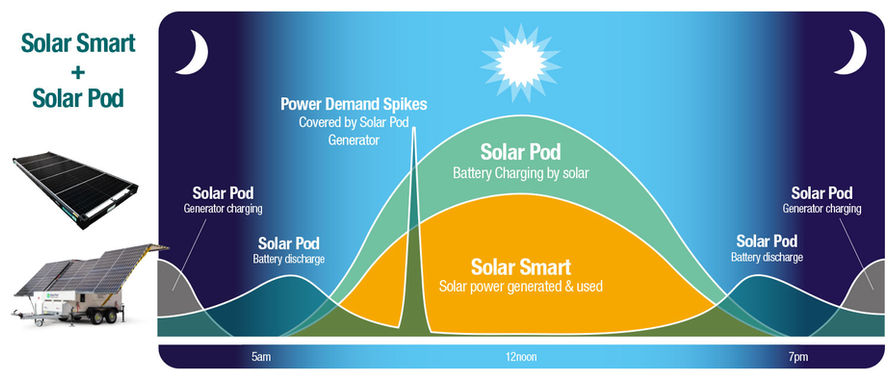

Power charging scenarios
Simple examples of how energy flows over 24 hours
Award-winning power products
AJC is proud to be a multiple award winner for its sustainable welfare facilities and power solutions.
Connect Battery Pods with Solar Smart Panels and Solar Pods to maximise efficiency and save more energy, and easily scale your battery storage unit to match the changing demands of your project.
